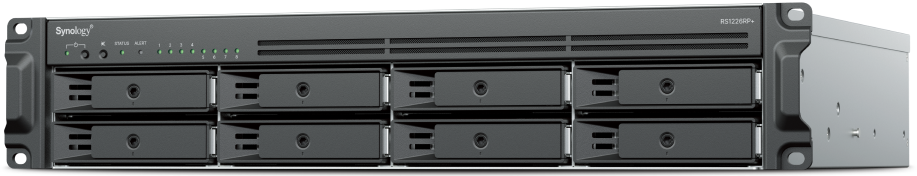

Synology RackStation RS1226RP+ – 8-Bay Rackmount NAS with Redundant Power

Synology RackStation RS1226RP+ is a compact 2U 8-bay rackmount NAS designed for small and medium-sized businesses, branch offices, and organizations requiring reliable centralized storage, backup, file sharing, and data protection.

With redundant power supplies, dual 2.5GbE networking, built-in M.2 NVMe slots, ECC memory, and optional high-speed network expansion, the RS1226RP+ provides a flexible storage platform for demanding business environments.

Hardware Highlights

• 8 Drive Bays – Supports eight 3.5-inch SATA HDDs or 2.5-inch SATA SSDs.
• AMD Ryzen V1500B – Quad-core, 8-thread 2.2 GHz processor.
• 4 GB DDR4 ECC Memory – Expandable up to 32 GB.
• Dual 2.5GbE LAN – Two built-in RJ-45 2.5GbE network ports.
• Dual M.2 NVMe Slots – Supports compatible M.2 2280 NVMe SSDs for SSD caching.
• PCIe Expansion – Supports optional high-speed network interface cards.
• Redundant Power Supply – Improves service continuity by reducing the impact of a single PSU failure.

High-Performance Business Storage

Synology RackStation RS1226RP+ delivers sequential performance of more than 2,300 MB/s read and 1,500 MB/s write, providing the throughput required for centralized file services, backup operations, synchronization, and other business workloads.

Built-In 2.5GbE Networking

The RS1226RP+ includes two 2.5GbE RJ-45 ports, providing higher network bandwidth than traditional Gigabit Ethernet NAS systems. The ports can also be combined using Link Aggregation for increased bandwidth, load balancing, and network failover.

Optional 10GbE & 25GbE Expansion

For organizations requiring greater network performance, the PCIe expansion slot can accommodate compatible network interface cards, enabling the RS1226RP+ to support 10GbE or 25GbE connectivity.

Redundant Power for Business Continuity

The RS1226RP+ incorporates redundant power supplies to improve system availability. If one power supply encounters a problem, the second power supply can help maintain system operation, making the RS1226RP+ suitable for business-critical storage environments.

RAID & Data Protection

• Synology Hybrid RAID (SHR)
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• JBOD
• Basic

Storage Expansion

The RS1226RP+ provides eight internal drive bays and can be expanded to a total of 12 drive bays using one compatible Synology RX426 expansion unit, allowing organizations to increase storage capacity as requirements grow.

Business Backup Solution

Powered by Synology DiskStation Manager (DSM), the RS1226RP+ can serve as a centralized backup platform for business data and IT infrastructure.

• Windows PC backup
• Physical server backup
• VMware virtual machine backup
• Microsoft Hyper-V backup
• Microsoft 365 backup
• Google Workspace backup
• NAS-to-NAS backup
• Cloud backup

File Sharing & Private Cloud

Organizations can use the RS1226RP+ as a secure private cloud and centralized file server, allowing employees to access, synchronize, and share business files across offices and remote locations.

Snapshot & Ransomware Protection

Synology DSM provides snapshot and backup technologies that can help organizations protect important data against accidental deletion, unwanted modification, hardware failure, and ransomware incidents.

Synology High Availability

Two compatible RS1226RP+ systems can be deployed using Synology High Availability to create an active/passive server cluster, helping organizations minimize service interruption for critical storage workloads.

Surveillance Applications

The RS1226RP+ can also operate as a centralized video surveillance platform using Synology Surveillance Station, supporting business security and IP camera management applications.

Compact 2U Rackmount Design

The short-depth 2U chassis is particularly suitable for environments where rack space is limited, including:

• Branch offices
• Network closets
• Small server rooms
• Edge computing locations
• Retail locations
• Remote offices

Ideal For

• Small and medium-sized businesses
• Corporate branch offices
• IT departments
• Engineering and professional services firms
• Educational institutions
• Organizations requiring centralized backup
• Businesses requiring redundant rackmount storage

Why Choose Synology RS1226RP+?

• 8-bay rackmount storage architecture
• Redundant power supplies for improved availability
• Built-in dual 2.5GbE networking
• Optional 10GbE and 25GbE networking
• Built-in M.2 NVMe SSD slots
• ECC memory expandable to 32 GB
• Expandable to 12 drive bays
• Comprehensive Synology DSM business applications

Get Synology RackStation RS1226RP+

For pricing, availability, hard drive configuration, RAID planning, memory upgrades, 10GbE/25GbE networking, or consultation on Synology RackStation RS1226RP+, please contact us:
