MagicSoft Playout - SD output license

SKU: playout-sd

Availability: In stock

Regular Price: MYR4,688.00
OR

Quick Overview

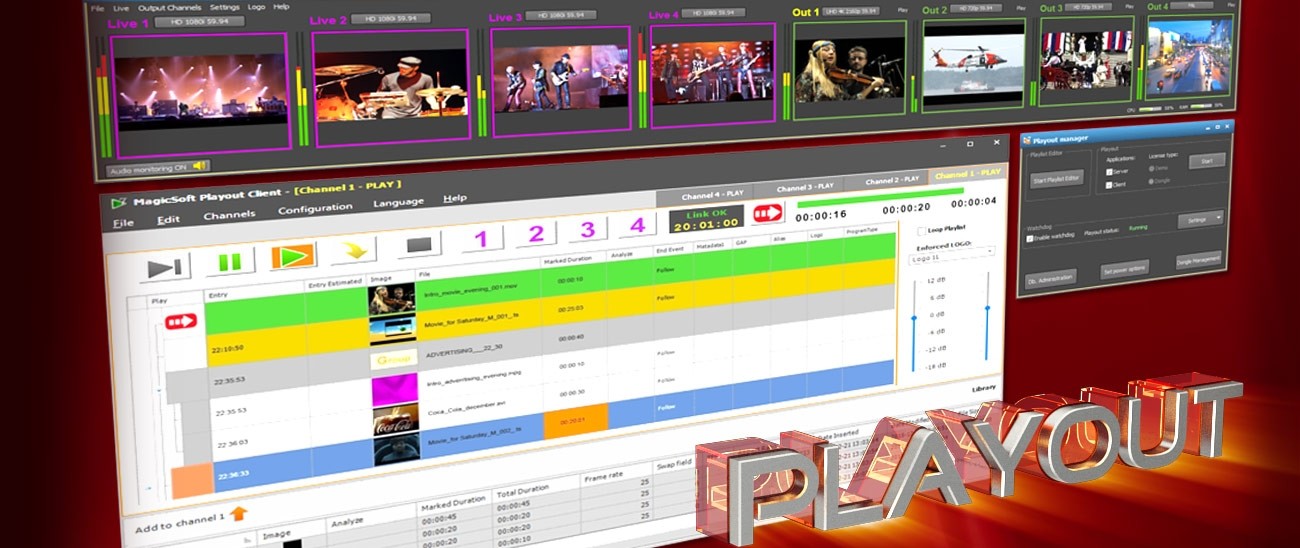

MagicSoft Playout

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • MagicSoft Playout

Details

SD output license ( works for PAL or NTSC output )

MagicSoft Playout software is designed as an intuitive and powerful multi-format playout solution for professional environments such as broadcasting stations and production studios. It's suitable for 24/7 playout for news, music and movie channels, allowing to insert commercials and to switch between multiple live video.
It works under Windows 7 / 8 and 10 and equivalent Windows Server OS (64 bit only).

MagicSoft Playout accepts any type of media files with size between 8K (7680 x 4320) and 320 x 240 and the frame-rate accepted range is between 3 and 120 fps.

Supported LIVE inputs and outputs :
   - BlackmagicDesign devices (Decklink & Intensity)
   - NDI streams
   - UDP streams

Supported video codecs and containers:
- H264 AVC Intra 50 and AVC Intra 100 .mxf
- H264 8 bit and 10 bit .mp4 / .mov / .avi / .mkv and transport stream ( 4:2:0 / 4:2:2 )
- Mpeg2 program stream and transport stream ( 4:2:0 / 4:2:2 )
- XdCAM 35 and XdCAM 50 .mov and mxf
- IMX (for both PAL and NTSC)
- ProRes .mov
- HEVC 8 bit and 10 bit .mp4 / .mov / .avi / .mkv and transport stream ( 4:2:0 / 4:2:2 )
- DNxHD 8 bit and 10 bit .mov and .mxf
- DNxHR .mov and .mxf
- DV .avi /.mov /.mxf and rawDV
- DVCPRO .avi and .mov
- DVCPRO HD .mov
- Uncompressed YUV 8 bit .avi and.mov
- Uncompressed YUV 10bit .avi and.mov

Output streaming supports resolutions between 4k and 360 x 288.
Some of the RTMP / RTMPS servers that works for 24/7 streaming are :
YouTube, Twitch, Wowza, Vimeo, FaceBook and DaCast

There is also support for UDP ( supporting unicast and multicast by
using H264 with AAC, AC3 or MP2)

The supported video input and output modes are :
   4K UHD       23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

The internal video engine will automatically resize, match aspect ratio and transcode the media files and the live inputs in order to match the characteristics of the output.

Additional Information

SKU playout-sd
Status Enabled
