Details
HD output license ( works for PAL, NTSC, 720p or 1080i output )

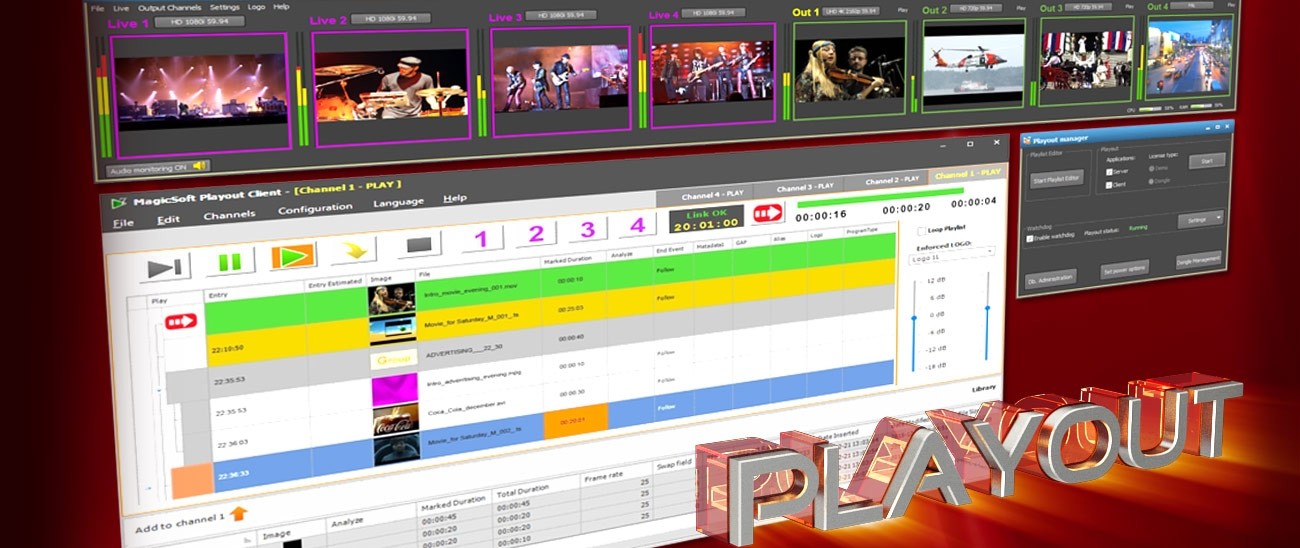

MagicSoft Playout software is designed as an intuitive and powerful multi-format playout solution for professional environments such as broadcasting stations and production studios. It's suitable for 24/7 playout for news, music and movie channels, allowing to insert commercials and to switch between multiple live video.
It works under Windows 7 / 8 and 10 and equivalent Windows Server OS (64 bit only).
MagicSoft Playout accepts any type of media files with size between 8K (7680 x 4320) and 320 x 240 and the frame-rate accepted range is between 3 and 120 fps.
Supported LIVE inputs and outputs :
- BlackmagicDesign devices (Decklink & Intensity)
- NDI streams
- UDP streams
Supported video codecs and containers:
- H264 AVC Intra 50 and AVC Intra 100 .mxf
- H264 8 bit and 10 bit .mp4 / .mov / .avi / .mkv and transport stream ( 4:2:0 / 4:2:2 )
- Mpeg2 program stream and transport stream ( 4:2:0 / 4:2:2 )
- XdCAM 35 and XdCAM 50 .mov and mxf
- IMX (for both PAL and NTSC)
- ProRes .mov
- HEVC 8 bit and 10 bit .mp4 / .mov / .avi / .mkv and transport stream ( 4:2:0 / 4:2:2 )
- DNxHD 8 bit and 10 bit .mov and .mxf
- DNxHR .mov and .mxf
- DV .avi /.mov /.mxf and rawDV
- DVCPRO .avi and .mov
- DVCPRO HD .mov
- Uncompressed YUV 8 bit .avi and.mov
- Uncompressed YUV 10bit .avi and.mov
Output streaming supports resolutions between 4k and 360 x 288.
Some of the RTMP / RTMPS servers that works for 24/7 streaming are :
YouTube, Twitch, Wowza, Vimeo, FaceBook and DaCast
There is also support for UDP ( supporting unicast and multicast by
using H264 with AAC, AC3 or MP2)
The supported video input and output modes are :
4K UHD 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
The internal video engine will automatically resize, match aspect ratio and transcode the media files and the live inputs in order to match the characteristics of the output.
Additional Information
| SKU | playout-hd |
|---|---|
| Status | Enabled |
